Abstract Fluid Shader Unity/VRC

Includes:

• Dynamic Fluid Shader
  • Native Unity Version
  • First-Person Distortion Version
  • VRC Udon Version
• Example Scene / Glasses Lens Example

Compatibility:

• VRChat Compatible! (Only compatible with worlds!)
• Built-In Render Pipeline

Main Features / Customizations:

• Fluid Viscosity / Physics: Edit the physical properties of how the fluid behaves.
• Specular: Edit how shiny the fluid is. Additional options are available to configure how the specular acts.
• Hue Shift Speed: Edit how fast the fluid will cycle through different colors.
• Fluid Desaturation: Setting provides the ability to make black and white fluid, or to create more pastel colors.
• Weight: This setting only applies to the screen distortion version. It determines how much your camera view motivates the fluid.
• Fluid Speed
• Fluid Contrast
• Fluid Brightness

Tutorial:

• Unity:
  • Build in version: 2021.3.5f1
  • Import Fluid_Unity.unitypackage into project

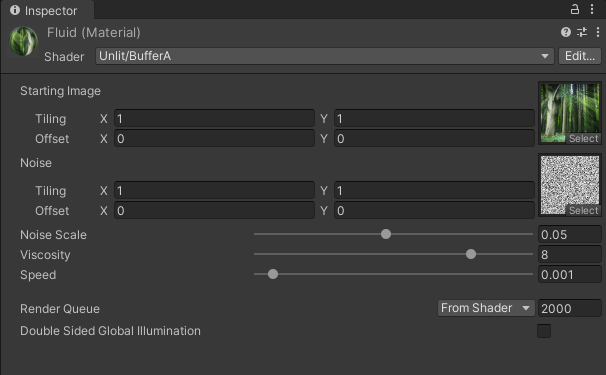

  • Surface Shader: Place the 'Fluid' script and the 'Post_FX' material on the object you wish to apply the shader too.

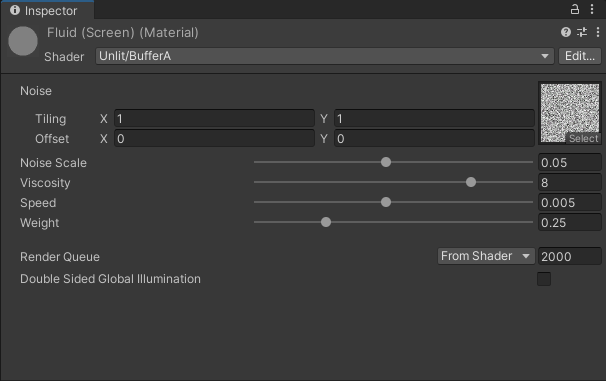

  • First-Person Shader: Place the 'Fluid_ScreenEffect' script onto the main camera. Make sure you use the 'Fluid (Screen)' material for the Fluid Material slot in the script.
  • Open the Scenes folder for examples:
    • 'Fluid' scene holds 2D surface example
    • 'Fluid_ScreenEffect' holds a first-person distortion example
• VRC:
  • Import Fluid_VRC.unitypackage into a VRC world project
  • This shader requires two passes, the first pass must be captured with an orthographic camera. We will use the second pass as the final render
  • An Udon script controls the shader passes, which should be placed on the first pass object.
  • Open the Scenes folder for a ready-to-use configuration

Terms and Conditions:

• This is a non-refundable purchase.
• Resale or redistribution of this asset, is strictly prohibited.
• You are not allowed to claim this asset as your own, edited or not.
